Product Details

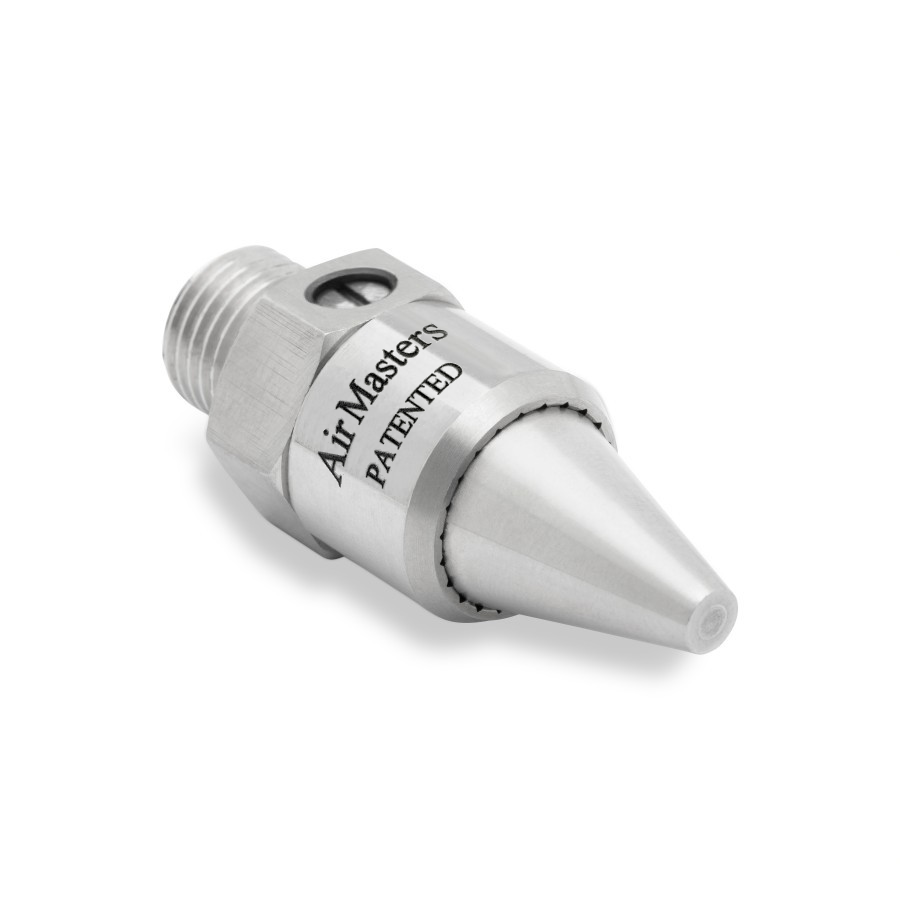

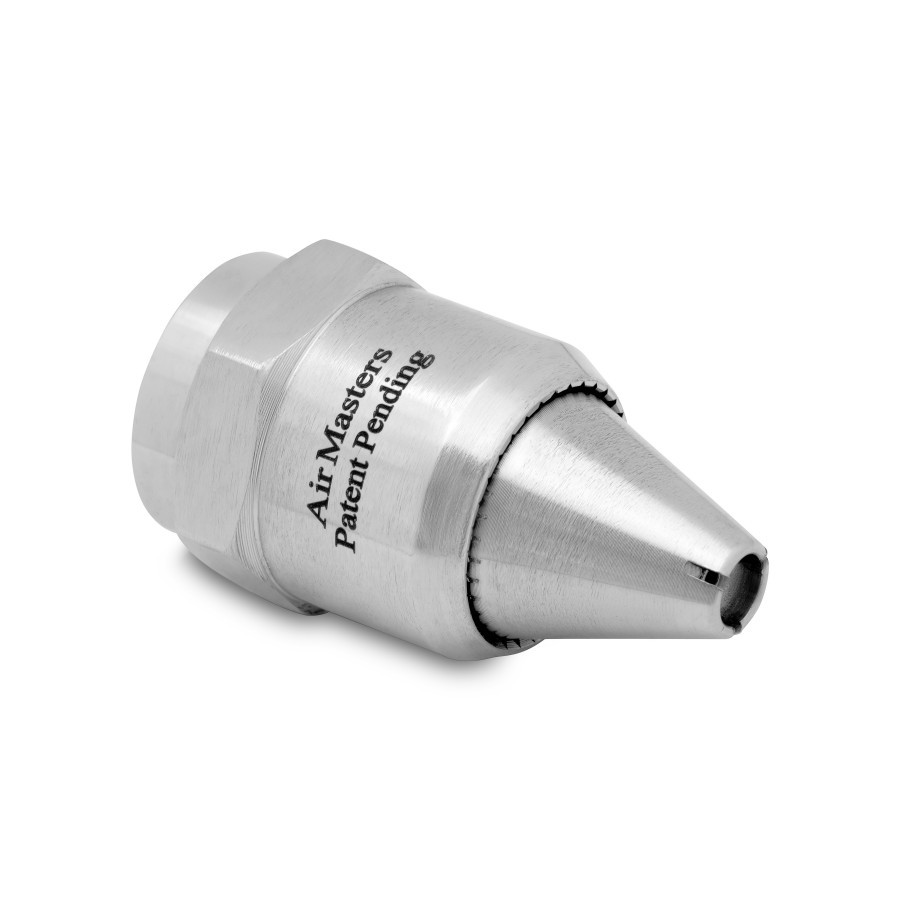

Durable Airmasters Air Nozzle designed for powerful, precise airflow with reduced noise. Ideal for cleaning, drying, cooling and debris removal in industrial applications.
ACE Flow Konzepts Pvt Ltd is a robust Airmasters Air Nozzle Manufacturer in India, providing high-performance air nozzles built to deliver strong airflow while maintaining low noise levels. These nozzles are designed for industries where a quiet and safe working environment is essential, helping reduce hazardous noise and improving operator comfort.
Constructed from high-quality materials, Airmasters Air Nozzles withstand high temperatures, oils, water, dust and other harsh industrial conditions. They are widely used for machine cleaning, part drying, blowing off unwanted debris and maintaining equipment cleanliness across industries like printing, manufacturing, food processing and machinery cleaning.
With precise directional airflow, the nozzles minimize air waste, improve efficiency and deliver clean, accurate performance. They fit easily into existing systems, offer adjustable airflow for customized operation and help speed up tasks while maintaining high-quality results.
Flat Jet Nozzles
The AIR-M200-4-316L Flat Jet Nozzle is engineered to produce a strong, laminar high-velocity airflow for powerful blow-off and cooling where air knives are insufficient. Flat Jets come with shim-controlled gap options:
-
0.004” (0.10 mm)
-
0.008” (0.20 mm)
-
0.020” (0.50 mm)
For larger gaps like 0.024” (0.6 mm) or 0.028” (0.7 mm), multiple shims can be stacked.
Airmasters Flat Jets outperform drilled holes and pipe systems by delivering higher force with lower air consumption and reduced noise.
| Model No. | Material | Connection Type | Blowing Force (N) | Air Consumption (SCFM) | Image | Technical Drawing |
|---|---|---|---|---|---|---|
| AIR-M103 | Aluminium | 1/8” Male NPT | 3.4 | 9.33 |  |
 |
| AIR-M103S | SS304 | 1/8” Male NPT | 3.4 | 9.33 |  |
|
| AIR-M103S-316L | SS316L | 1/8” Male NPT | 3.4 | 9.33 | ||
| AIR-M104 | Aluminium | 1/4” Male NPT | 4.5 | 10.58 |  |
 |
| AIR-M104S | SS304 | 1/4” Male NPT | 4.5 | 10.58 |  |
|
| AIR-M104S-316L | SS316L | 1/4” Male NPT | 4.5 | 10.58 | ||
| AIR-M104F | Aluminium | 1/4” Female NPT/BSP | 3.8 | 9.33 |  |
|
| AIR-M104FS | SS304 | 1/4” Female NPT/BSP | 3.8 | 9.33 |  |
|
| AIR-M109 | Aluminium | 1/8” Male NPT (Adjustable) | 3.8 | 9.33 |  |
 |
| AIR-M109S | SS304 | 1/8” Male NPT (Adjustable) | 3.8 | 9.33 |  |
|
| AIR-M120 | Aluminium | Female or Male 1/2” BSP/NPT | 18.6 | 54.76 |  |
 |
| AIR-M120S | SS304 | Female or Male 1/2” BSP/NPT | 18.6 | 54.76 |  |
|
| AIR-M121S | SS304 | Male / Female 3/4” BSP/NPT | 18.6 | 54.76 |  |
